This hardware goes with the pedals you replace.
You should make sure you have the "trap", or pedal works,
in good condition since the pedals get hard use by both
sincere players and itinerate brats who think the piano is a
big truck, and the right pedal is the accelerator.

CLICK HERE-- FOR LARGE GENERAL HARWARE PAGE

EXHAUSTIVE WORD INDEX OF THE WHOLE SITE:

Search this site or the web powered by FreeFind

Site search Web search

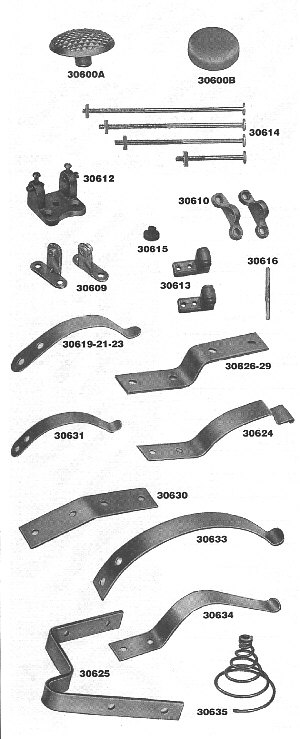

Part Description: Part Number Price

Toe Buttons for some pedals- Set of 3
Brass- Found on Stetson, Hall,
and a number of other pianos-
See 30600A in graphic SH2585 $ 25.75

Pedal hinge pins- Fluted center-
See 30616 in graphic
2¼ inches long by .156 inch diameter-
Fit all pianos- SH2584 $ 1.20 ea.

Pedal Props- See 30614 in graphic
Rod (with nut) to connect pedal
to wood or metal (trap) bar-
Lengths- 2¼", 4", 4½", 5"-
Specify on your order form SH579 $ 1.50 ea.

Pedal Bracket with pin mounts-
See 30612 in the graphic
Must remove pins in pedals to use
these antiques- Set of three- SH2582 $ 50.00

Pedal Bracket- stamped steel with nylon insert-
See 30609 in graphic SH2587 $ 4.00 pr.

Pedal Bracket with plastic bearing-
Steel bracket with Nylon Bushing 30613 SH2589 $ 8.25 pr

Solid Nylon Pedal Bracket
Used in Baldwin pianos SH2590 $ 3.75 pr.

Felt Pedal Prop Bushing-
See 30615 in graphic
Fits at the bottom and top end of the
pedal props to kill noise- SH340 $1.00 ea.

Pedal (trap) lever spring-
See 3019-23 in graphic- Returns wooden lever to rest position-
Same as above- Light tension- SH583T $ 2.50
Medium tension SH583M $ 2.50
Same as above- Heavy tension- SH583H $ 2.50

Bottom Board Catch- See 30624 in graphic SH585A $ 2.95

Desk and Key Cover rest- 3 1/4" See 30631 in graphic SH581 $ 2.75
Desk and Key Cover rest- 5" See 30633 in graphic SH582 $ 3.75

Aeolian Grand Action Spring- See 30634 in graphic SH580 $ 5.30

Simple Trap Wood Lever Hinge- See 30630 in graphic SH587 $ 5.95

Pelican Hinge for Wood Trap Levers- See 30625 in graphic SH593 $ 20.50

Norris Trap Lever Springs:
Be sure your problem is not just mounting screws loose.
7/8"    See 30626 in graphic                         SH584A    $ 7.20
1 3/8" See 30627 in graphic                             SH584B      $ 7.20
1 7/8" See 30628 in graphic                              SH584C    $ 7.20
3 1/2" See 30629 in graphic                              SH584D   $ 7.20
