Grand and Upright Piano Hammers

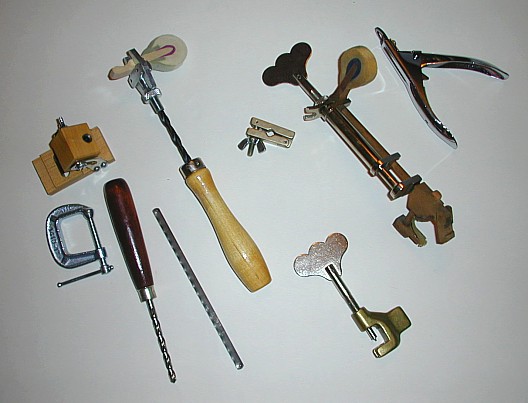

HAMMER WORK TOOLS

These tools are necessary if you intend to do a whole
set of hammers--
Even a whole section.  They assure you the best
chance of removing the old hammer without damaging the shank.
Also, you can choose to buy hammers without holes drilled and
do them yourself.  For square grands this is absolutely needed
.














                                                             Part Number           Price

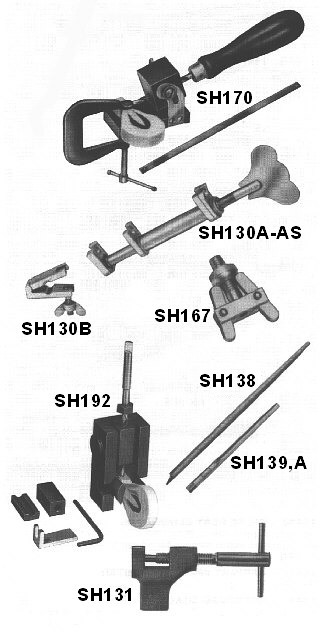

Hammer head and butt boring jig-
    The correct angle of boring is set easily
    by using the adjacent hammer.
    Essential where a number, of full set,
    of hammers is being fitted-                        SH170          $ 44.85

Hammer Head and Butt Borer--
    This is a production model of the one
    above. Easier to use and control--
    More precise--                                          SH192       No longer available
    Universal Handle SH26 needed







Hammer Head Remover and Butt Extractor--
    FOR UPRIGHTS ONLY
    Hammers are often removed by crushing the molding.  This damages the shank and can break it.
    This tool pulls the hammer molding off by force under control.
    The bevelled plate is for angled hammers-
        Spinets model                                                                                                                 SH130AS       $ 42.45
        Upright model                                                                                                                 SH130A         $ 42.00
        Do NOT use on grands (see below)

Clamp- Used with 130AS and A
    This clamp is used where a shank is broken. It is attached so that the hammer can be pulled
    with the Extractor.                                                                                                                   SH130B      $ 24.95


Grand Shank Press (Hammer Head Remover)--
        This cute little rascal works great--  It presses the shank out of the hammer
        head molding without destroying everything--  ONLY for Grands--                                     SH131        $ 29.00

Boring Out Guide-  When the hammer shank breaks off at the hammer molding or at the butt,
    cut the excess smooth, set up this tool like a small vise, then drill down through it to
    center the hole-                                                                                                                      SH167         $ 50.00

Hammer shank reducer-- See in the graphic up the page.
    Universal handle needed- SH 26 below
    Use to shave hammer shank if it is too large.                                                                          SH75           $ 23.75

Drills for hammers and shanks-  Has a point on the tip of the drill to show when the
    drill is just about through the grand piano hammer molding.  This allows for the glue to
    exit the hole and not block assembly due to hydraulics-
        Upright- 7/32"                                                                                                           SH76A          $ 19.00
        Grand- 13"64"                                                                                                           SH76B          $ 19.00
        Spinet- 3/16"                                                                                                             SH76C          $ 19.00
        Combination handle should be used for control
        A power tool should only be used if you are using a drill press
        where you have control of drilling depth.
        Universal handle SH26 needed- See below



Grand Hammer Head Rasp--   Universal Handle 15152 needed--                                           SH138           $ 13.12

Grand Hammer Head Reamer--
    It is quicker and more accurate to ream the hammer head than to reduce the shank--
    Square end for No. 989 Tap Wrench--                                                                                  SH139            $ 28.00
    Chuck end for Universal Handle SH26 needed--  See below                                                  SH139A         $ 32.00

Hammer Felt Head Iron--
    Used to iron hammer heads and harden and smooth them Electric soldering iron type
    heating unit and handle, but in place of the normal soldering tip, a brass iron is attached.
    Made by Weller-- 80 watts                                                                                                    SH905           $ 89.50
    Same as above, but 40 watts                                                                                                 SH905A        $ 66.75
    Same iron,
but hard wood handle, and head must be heated in a flame                                   SH113           $ 29.50



Hammer Shank Cutter-
When replacing and repairing many
      hammer shanks, this tool will make a clean and easy
      cut of the wooden shank-                                                           SH237           $ 13.90



Voicing Tool--  Curved head for better angle of work
         The professional way to voice hammers to quiet them--  Part No. in graphic-- 160935A    SH103C       $ 30.40

Needles for above voicing tool-- 20 per package                                                              SH107         $   4.00

Universal Handle-- High Quality
    Tool Steel with high impact plastic handle.
    Tools are held tight and released by turning
    a compression knurled bezel. Fits all
    regulating tools which come without a handle.
    See handle graphic at right                                                                                                 SH26            $ 31.00



FIND HAMMER SHANK REPAIR PARTS

Hammer Felt Hardening Treatments

Spinet and Upright Hammers

Grand Piano Hammers

Read my instructions on
panic hammer repair
, and
hammer shank repair
