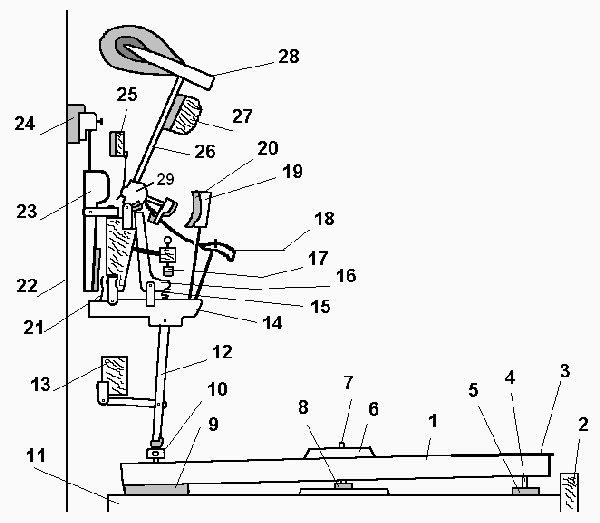

UPRIGHT ACTION
(NOT CONSOLE)
Gray areas are felt cushions of parts.
| 1 KEY LEVER | 2 FRONT BOARD (Key slip) |
| 3 KEY TOP |
4 FRONT RAIL PIN |
| 5 FRONT RAIL FELT PUNCHING | 6 KEY BUTTON |
| 7 CENTER PIN | 8 CENTER RAIL FELT PUNCHING |
| 9 BACK KEY RAIL CLOTH | 10 CAPSTAN |
| 11 KEY BED | 12 STICKER |
| 13 STICKER RAIL WITH STABILIZER | 14 WIPPEN |
| 15 JACK SPRING | 16 JACK |
| 17 JACK ADJUSTMENT BUTTON | 18 BRIDLE STRAP AND WIRE |
|
19 BACK CHECK | 20 BACK CHECK FELT |
| 21 DAMPER OPERATING SPOON | 22 STRING (wire) |
| 23 DAMPER LEVER | 24 DAMPER FELT |
| 25 HAMMER SPRING RAIL | 26 HAMMER SHANK |
| 27 HAMMER REST RAIL |
28 HAMMER |
| 29 HAMMER BUTT |
