UPRIGHT PIANO HARDWARE IS ON THIS PAGE
Some parts here are used in Grand Pianos also.
Hinges and action mounting hardware for upright pianos
are found under other links listed here.

ELSEWHERE IN THE CATALOG:

GRAND PIANO HARDWARE

BENCH HARDWARE

SMALL CABINET PARTS-- RUBBER, BRASS, WOOD, AND METAL

GRAND AND UPRIGHT PIANO DESKS

GRAND AND UPRIGHT PEDAL HARDWARE

PIANO AND PIANO BENCH LEGS

PEDAL HARDWARE--  Including springs for pedal trap mechanisms

To Replace Upright Pedals

To Replace Grand Pedal

FALLBOARD AND SOUND BOARD DECAL PAGE

Grand Piano, Pedals, Lyres, and Legs and Lyre Hardware

CABINET PARTS

Learn how to use this hardware to repair your desk.

Part Description                                                                                                           Part Number            Price

(*) These items are best found at
Ace or True Value Hardware Stores

Lid Prop-- Lifts lid on uprights to
      allow more sound from the piano     SH560               $ 2.50

Front Flange Hooks-
      Pairs- left and right
      Replaces common hooks which
      hold the desk on the cabinet             SH594              $ 6.80

Fallboard Rod Clamp-
      Holds lever rod which acts a a hinge
      on many spinets and some uprights   SS500             $2.00

Action Bracket Bolts- 3/8" diameter
      Bolts only-- Knobs not included

Round Prop Nuts-
      For tight spaces where screwdriver removal is desired-- Found on some spinets
      Also found on grands on rail above hammers and elsewhere
      SH925         $ 2.00 each

Grand Lid Prop Hinge-
      Solid Brass, Satin finish- Anchors bottom end of lid prop-  301909 in the graphic
            but more massive than the one illustrated
      PKRH-5803     $ 31.80 each

HINGES

Part Description                                                                                                     Part Number            Price

[ Repair- Chapter 7, #16 ]

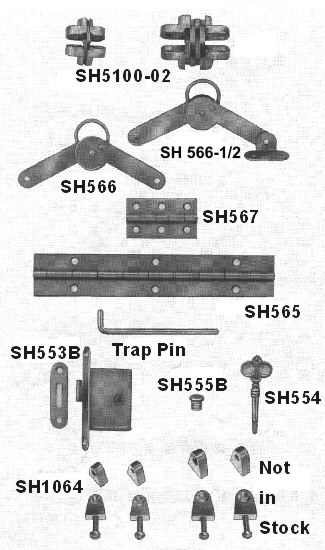

The following items are
      not in order as shown
      in the graphic.

Upright Piano Locks- Set
      Includes solid brass lock and
      selvage, brass striker plate,
      key, and escutcheon
      Satin Brass                                   SH553B               $ 14.95

Escutcheon only-
      Brass                                           SH555B                $ 8.25

Striker Plate-
      Brass                                           SH556B                $ 3.75
      Nickel                                          SH556N               $ 4.50

Upright Lock Keys-
      Triangular                                     SH554                $ 2.50

Trap Pins- 3 inches long by .155 thick
      These pins are used to hold wood
      and metal pedal rods in their mounting
      points-  301074 in graphic              SH3568           $ 5.00 each

Music Desk Hinges

Strut Hinge
      Mount in place of upright top hinges. Holds top up and will prevent it from
      flopping backward and breaking off the top when it is opened.                                           SH1061            $ 2.00 each

Invisible Hinges- (We have them visible in the graphic above just for you :-)
      Used for fallboards (key covers) and key slips. Used on almost all old player pianos.
      Furnished with screws

Knife Hinges- Nickel Plated-
      Quantity-- Pair for left and right
      Without Bracket                                                                                                          SH566                $ 21.75 / pair
      With Bracket attached                                                                                                SH566-1/2          No longer available

Piano Butt Hinge- Solid Brass- Used for Fallboards (key covers) and desks
      1 3/4" long by 1" wide by .050 thick.
      Satin Brass Finished                                                                                                  SH567B            $ 12.50 each
      Nickel Finished                                                                                                          SH567N          $ 20.00 each

Mason and Hamlin Style Desk Hinge
      Solid Brass satin finish- 1-1/4" wide- 5 inches long                                                        SH1095               $ 25.75each

Solid Brass Continuous Hinges-- 60" long
      Screws are not supplied. This is because the original screws would have come
      through the wood of the lid of the piano so that they almost reached the other
      side of the wood. If we sent screws that were slightly too long for your piano,
      they would come through the top of the piano- Horrible thought. So, YOU
      must take your old screws to a hardware store, and look for screws exactly
      like yours. Do not get them slightly longer to pick up more wood. Instead,
      fill the screw hole half full of tooth pick pieces and carpenter's glue to tighten
      loose screws.
      1-1/16th inch wide when opened. .040 gage. Holes drilled and countersunk.
      Satin Brass Finish                                                                                                       SH565B             $ 66.25
      Nickel Plated                                                                                                               SH565N            $ 125.00

Steinway Style Sectional Hinge
      An exact replacement. Consists of 11 sections measuring 5 inches length
      and one section measuring 4 inches held in place by continuous hinge pin
      that is 60-5/8 inches long. Opens to 1-1/8 inch.
                    Brass                                                                                                            SH565AB          $ 250.00
                    Nickel                                                                                                          SH565AN          $ 357.00

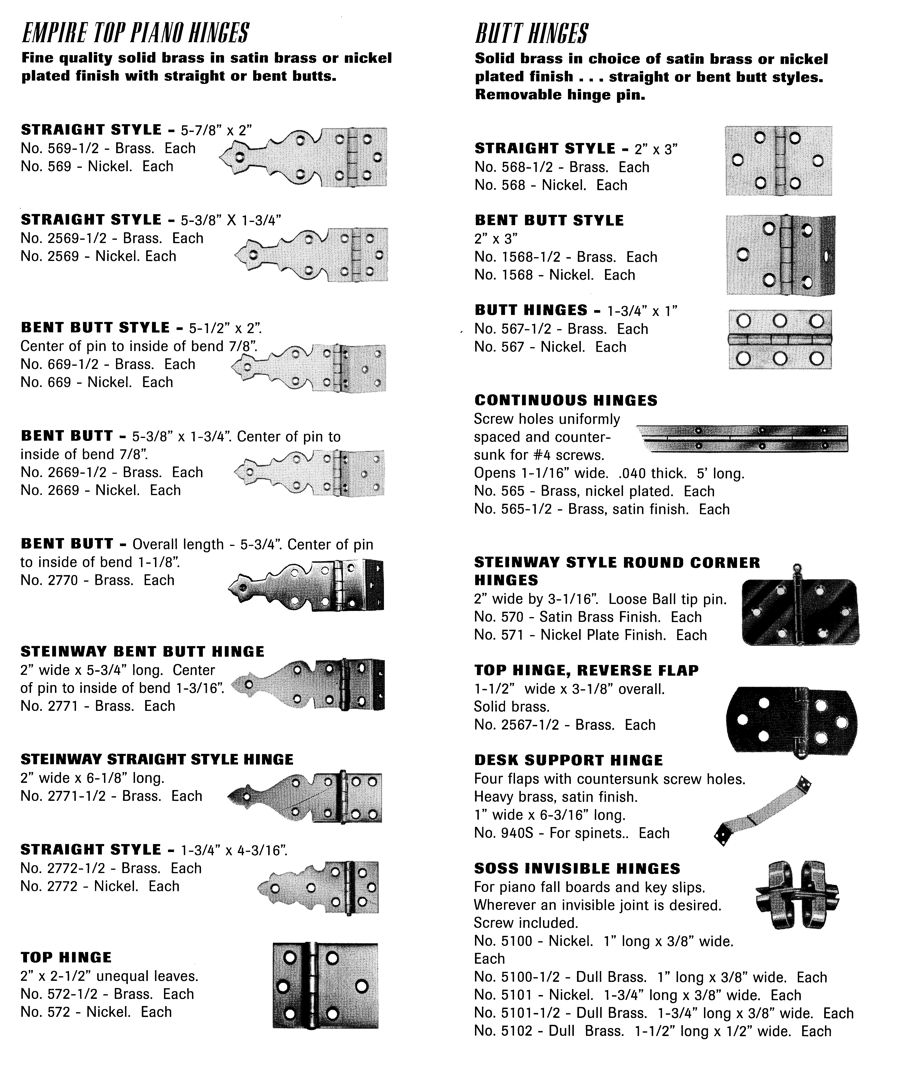

HINGES:

Old and New Part Numbers and Prices of the above Piano Hinges

Minimum order applies.
Single hinges not available without other items being ordered.
You must order using the New Part Number

Solid Brass Hinge Pins-
      How will you know what size to order if you lost all your pins? Suggestion: Find a friend who
      has a detailed set of drill bits. Slip drills into the hole in your hinge until one is good and snug.
      Next, mic the drill bit to find the thousands. For that trick, you owe me a cup of coffee :-)
