GRAND PIANO HARDWARE

Part Description                                                                                                           Part Number            Price


Grand Keyboard Spring--  Key cover
      comes to rest on this.  Old No. 30549   SH959         $  27.00

Grand Action Shift Springs--  Returns the
      key action frame after using quiet pedal.
      Blued Steel-  16 gage steel
      Length            Width     Old No.
         8 7/16"          1 3/4 "     30550A       SH962         $  20.00


Grand Fallboard (key lid) Hinges--
      The only grand fallboard hinges we can get are about 1" square.
    call for more info & price.

Grand Desk Brass Slides--
      Desk slides on these- Pair
      Can be used to replace wooden slides.
      14 inch   (Old Part #- 30556)                 SH1072      $ 46.75

Grand lid support (old part 30557)
      Solid brass- Hinged-
      Short arm 2", long arm 12"-                     SH935       $ 62.00
      Same as above but nickel
SH936       $ 72.00



Grand Leg Ferrules--  These are much more substantial than the ferrules elsewhere on this page.
          Solid cast brass-- For nickel plated sockets, order these and send them off to be plated.

          Inside Dimension            Height              Metal                        Old Part No.                Ordering No.         Price
                    1 1/2"                         5/8"             Polished Finish        Graphic No. 30560A               SH964A        $ 38.25 each
                    1 3/4"                       1 1/2"            Polished Finish        Graphic No.  30561A              SH964B        $ 41.75 each
                       2"                             2"               Polished Finish        Graphic No.  30562A              SH964C        $ 65.00 each




Grand Desk Rest--

          Solid Brass---  7 1/8 inch from knuckle to end
          Complete with staple, rubber cap, and screws.
          Satin Brass Finish      Old Part Number  30565                           SH941      $ 69.50
          Polished Nickel         Old Part Number  30566                           SH942      $ 79.50
          Rubber caps only  (Cover parts)  Old Part Number  30567A      SH941C    $   2.00






Desk Support Hinge--  Solid brass four flap hinge. In graphic, see 30568-69-70
          For desk that fold either forward or backward.  Furnished with screws.

          1 inch wide by 9 inch long-                  Satin Finish                                                                   SH940N   $ 93.25


Desk Butt (Flap) Hinges-- 1-3/4" by 1"
           Brass                                                                                                                                 SH567B      $ 12.50 each
           Nickel                                                                                                                                 SH567N       $ 20.00 each



Steinway Sostenuto Pedal String                                                                                                      SH961         $ 31.75

Part Description                                                                                                           Part Number            Price

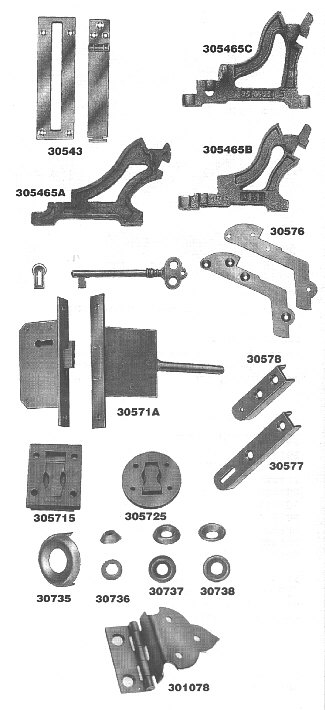

Grand Action Brackets--  Cast iron with screws--  Needed if one breaks
           Be sure the bracket in the picture is the same as yours.
           If the new brackets are shorter than yours, add shims of maple wood
           under the feet to lift the bracket into proper relationship with the rest of
           the action. Also, the hammer rail may need to be remade or shimmed
           to level the hammers with the action. Regulation will add the final touch.
           Aeolian-American No. 108 Type
           See 30546 in the above graphic              SH1076    $  18.55 ea
           Full set of three or four of either style                       $   15.00 ea


Grand Piano Lock--

Complete with plunger, escutcheon,
        (That's the little key lock diddly) and key.
        Satin brass finish--
        Selvage plate 5/8" by 4 1/16"
        Square ends to plate.
        Key alone fits many grand locks

        Escutcheon only                                       SH965E     $    3.00

Grand Lock Escutcheon, raw brass          SH965ES   $ 29.25
        Key only for grand locks                          SH965K     $  12.00





Mason and Hamlin Style Desk Hinge

See Part Number 301078 in the graphic                                                                               SH1095      $27.00 each



Grand Leg Plates--  Cast iron, Set of 3 units (legs) -- Two interlocking plates to each unit.
               Round--  4 3/8 inch diameter                                                                                                 SH966      $ 97.50






Grand Agraffes
         Some high quality uprights also had grand piano type agraffes.
         Go to the Restringing Page for agraffes and tools for them.

         See our Instructions on Agraffe Repair

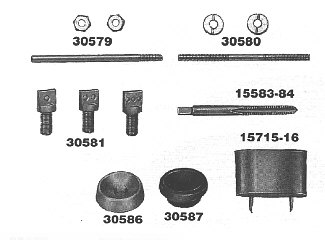

Grand Hammer Rail Prop--  Support piece in nearly all grand actions--
               2 3/4 inch length; set of 5 parts, nuts included              Old Part Number 30580B           SH1027           $ 22.50

Grand Hammer Rail Slotted Prop Nuts-   See in graphic above at top right                       SH925             $ 1.00 ea.

Grand Lid Support Cups--  Receive the top end of the lid prop
               Brass Finish--   Old Part Number 30586                                                                 SH938              $  9.75
               Nickel Finish--                             30586N                                                              SH938N           $  14.25
