GRAND
PIANO ACTION PARTS
| ORDERING INFORMATION: MINIMUM
ORDER: SHIPPING
POLICY: You MUST browse the Catalog area, and try to learn what you want. We no longer search our catalog for you. Have
this information ready: Make
sure you are in the catalog area for your kind of piano-- If you are confused, call us for assistance. If we do not answer the phone, we are probably here-- Just leave a message- we will
return your call (it may not be the same day). |
This includes all of the moving parts of a grand piano from
your finger to the hammers, and we link to pedal works.
If in doubt, please go to the diagram pages and double check to see if you are ordering the right part. It is impossible to give a "Back" button to return to so many pages, so please use your browser's "Back" button Also, I give you a link to the page which tells how to make the repair or installation of the new part.
EXHAUSTIVE WORD INDEX OF THE WHOLE SITE:
CLICK
HERE:
To study the diagram of the
Grand Action or Grand
Damper Action
CLICK
HERE:
For Upright Piano Parts
GRAND PIANO ACTION PARTS
Many strange parts of many variations are found in grand piano actions.
We need to be very sure we are getting you the exactly correct part.
GRAND HAMMER SHANKS AND FLANGES
There are so many variations that I am
giviing you
a Graphic
of Grand Hammer Shanks and Butts to order from.
Read my instructions on alligning grand
hammers
WHIPPENS
NOTE: The Steinway Hamburg type without adjustable assist spring is also available. Part SH931HAMJ. Same price as 931HSJ.
Order appropriate heel (1029 or 1029A) as well.
These shanks and flanges go with the Steinway and Baldwin wippens below
WE NOW CARRY WESSEL, NICKEL & GROSS CARBON FIBER WIPPENS.
We recommend these composite parts over wooden parts because they are more durable, have less friction, and are not affected by moisture. Wippens are
custom assembled with jacks & flanges to match your sample.
All styles available.
PRICE: $2089 per set of 90
Description Part Number Price

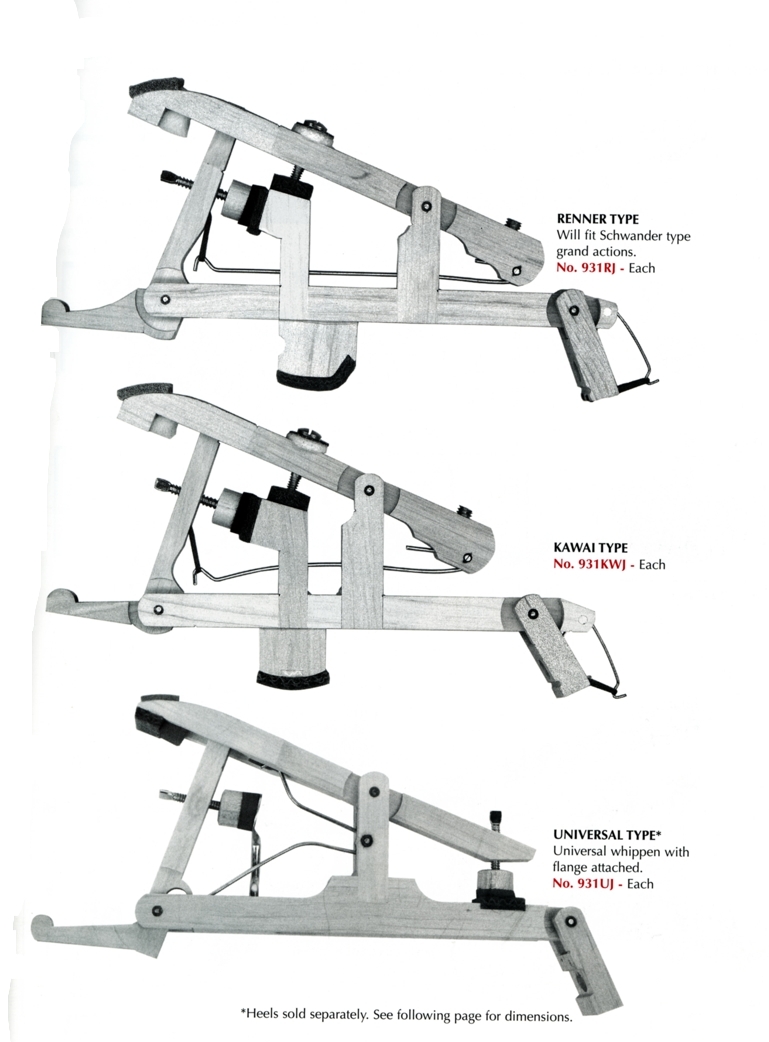

Renner Wippen
SH931RJ $ 27.25
Dozen
$
325.00
Set
of 90
$ 2250.00
Kawai
SH931KWJ
$ 27.25
Dozen
$ 325.00
Set of 90
$ 2250.00
Universal
Type (Specify long or short heel- This wippen fits many pianos) SH931UJ
$ 24.25
Dozen
$ 275.00
Set of 90
$ 1885.00

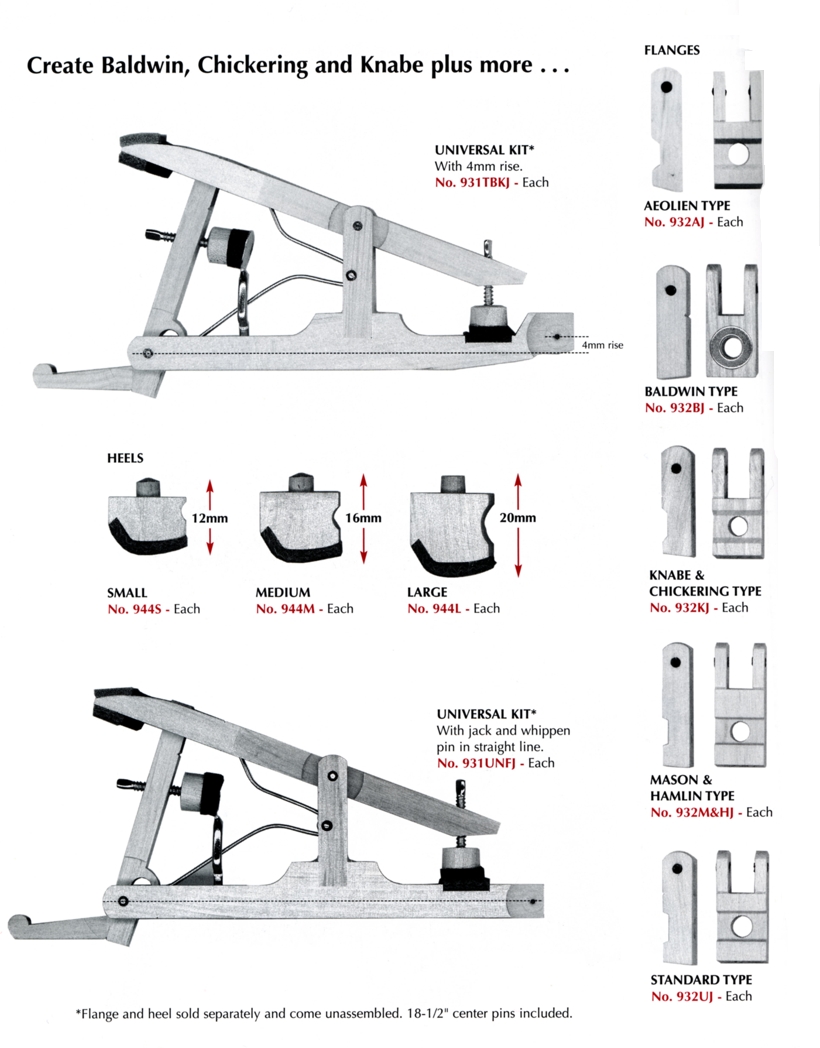

UNIVERSAL
WIPPEN KITS
Be
very careful in choosing the base wippen- Measure and double check
Mix
and match- Choose the right wippen, stump, and flange
Give
us all of the THREE order numbers that apply
Aeolian
American, Knabe, Steck, Chickering 305,
Fischer,
Baldwin, Mason Hamlin, Standard SH931UNFJ
and SH931TBKJ $ 26.75
complete
Dozen
$
295.00
Set
of 90
$ 2025.00
Steinway Type
SH931CJ
$ 25.50
Dozen
$
285.00
Set
of 90
$ 1975.00
Mason
and Hamlin Type
SH931M&HJ
$ 25.95
Dozen
$
290.00
Set
of 90
$ 1995.00
Yamaha
and Young Chang
SH931YJ
$
25.50
Dozen
$
285.00
Set
of 90
$ 1975.00

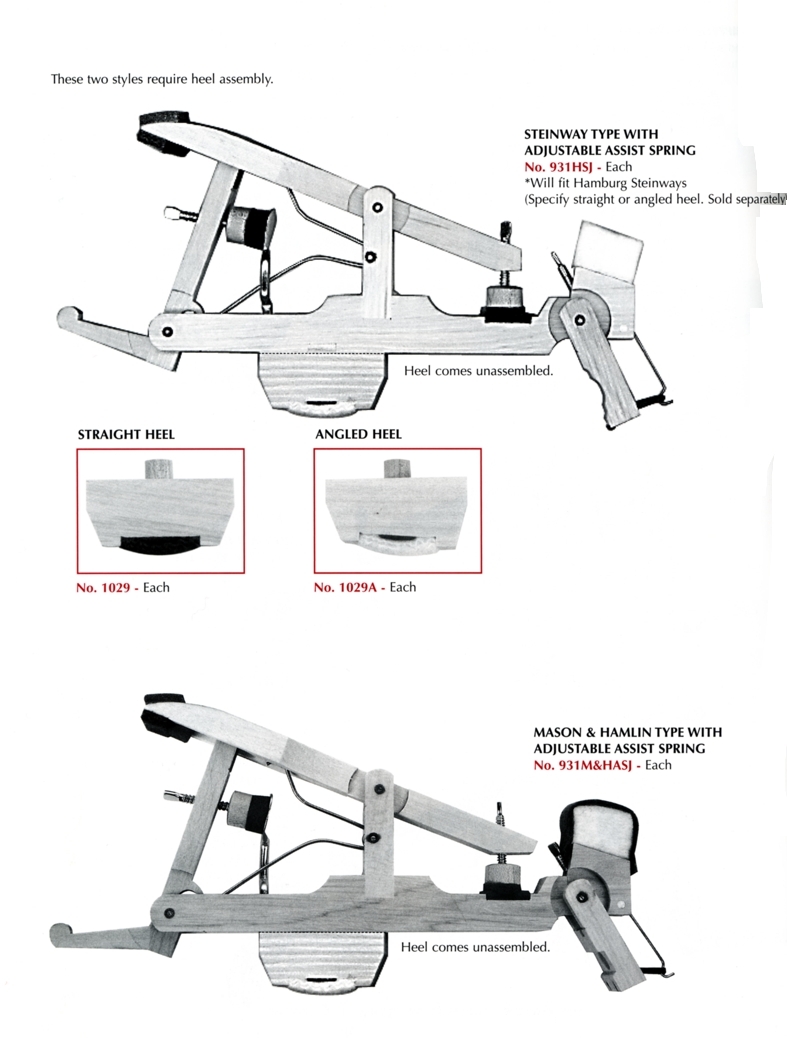

Steinway
Type with Adjustable Assist Spring
Be
sure to specify the correct stump Part Number
One
wippen
SH931HSJ
$ 26.75
Dozen
$ 295.00
Set
of 90
$ 2025.00
Mason
Hamlin with Adjustable Assist Spring
Be
sure to specify the correct stump Part Number
One
wippen
SH931M&HASJ
$ 23.25
Dozen
$ 265.00
Set
of 90
$ 1795.00

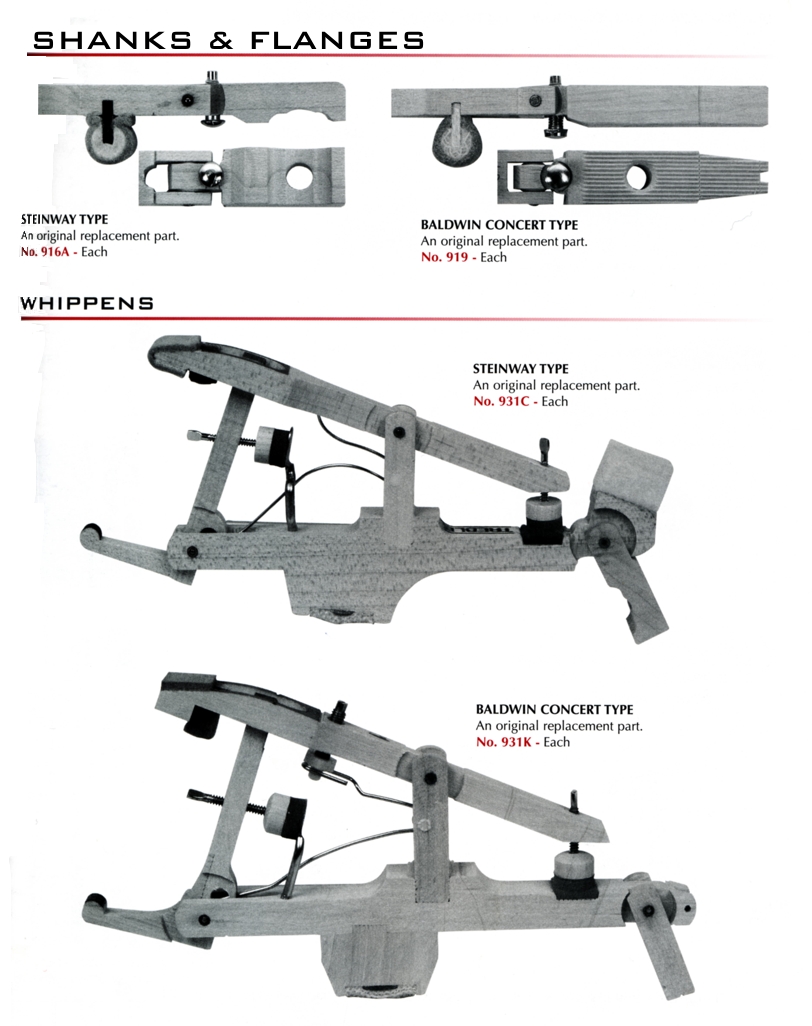

Steinway-
Pre-1984 Original Replacement Part
SH931C
$ 36.00
Dozen
$
400.00
Set
of 90
$ 2575.00
Steinway
Original Replacement Shank and Flange
SH916A
$
24.00
Dozen
$
275.00
Set
of 90
$ 1780.00
Baldwin
Concert Original Replacement Part
SH931K
No longer available
Baldwin
Original Replacement Shank and Flange
SH919
$
12.00
Dozen
$
135.00
Set
of 90
$ 995.00

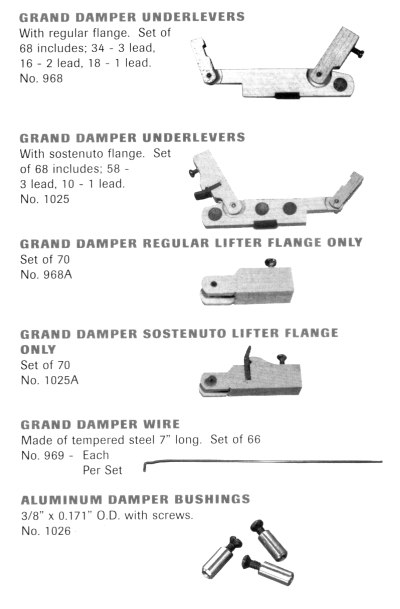

UNDER LEVERS-- For Grand Damper actions
See Diagram of Grand Damper Action
Description Part Number Price
Grand Damper Under Levers with regular flange
This is a kit. It comes
with a 48" mounting rail which you
will very likely have to install in place of the original
rail.
Full
instructions tell you how to do this. The under levers
come with sostenuto lifters attached.
There is no choice
of
under levers without sostenuto lifters.
Set
of 72
PT-TGDK
$ 845.00
We have a few individual under levers left first come first serve $ 20.00 each
Grand Underlever Action Kit
Fits Steinway short arm SH1028
$ 875.00

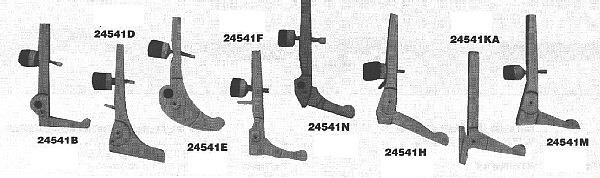

JACK !!
Grand
Jacks--
Match yours to the
graphic.
Price is on the
graphic.
REGULATING PARTS
These attach to the underside of
the grand shank and are activated by the jack.
Do now try to recover the knuckles
with buck skin. Be sure to remove the tongue from
the shank and seat the
new knuckle well into the hole.

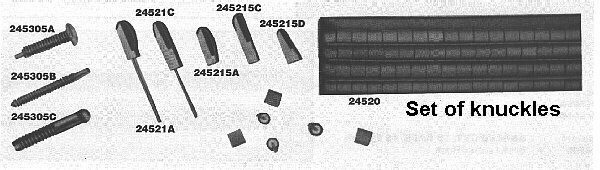

Back Checks, Knuckles, and Regulating
Screws for Grands-- Match yours to the ones in the graphic below.
Do you want to learn to adjust
grand actions. Find a great book for this skill.
Regulating "Lift
Off" Screws-
For
grand shanks- 1/2" long under head x .124" round flat top end
Old
Part number in graphic- 245305A
SH588 $ 11.00 / Doz.
Tokiwa Grand "Let Off" buttons- Set of 90
Wood Button with holes on wire- felt punchings included but
not attached SH1024
$ 150.00 per set
Regulating Screws- Spade head-
3/4" long x .093
Old Part number in graphic- 245305B
SH544
$ 24.00 / Doz.
Regulating
Screw replacement-
When the screw ring or tap breaks off
On Steinway metal
rail, drill hole and use sheet metal screw.
Exceptional life saver when
jack
regulating button busts-
Dozen
only-
SH1539 $ 24.45
Regulating Wooden Buttons with felt punchings- 3/8 inch diameter SH549 $ 49.25 per 100
Regulating Screws- 1 1/8 inch
long.
Has the ring
type top needing tool No. 16124 with handle 15152 to adjust. SH540
$ 13.45 per 100
Regulating
Felt Punchings- Now sold in sets of 100 only
Replace worn or missing jack button round felt
punchings-
Also found on
buttons in grand wippens and some damper actions.
Also found in player pianos
Remember to allow for wear of old buttons in estimating thickness
of new buttons.
Medium
Green Cloth- For uprights- 3/8" dia. by .130 inches thick
SH330A
$ 1150
Thick Red Felt- 3/8"
dia. by .250 inches thick- For grands-
SH330D
$ 13.50
Medium Brown Felt - 5/16" dia. by .130" thick
SH330J
$ 11.75
Medium Brown Felt - 7/16" dia. by .130" thick
SH330K
$ 18.50
For large quantities of 1000-
All above sizes- Send E-Mail
Replacement
Key Lever--
We
now have a craftsman who can make a new key lever of kiln dried wood.
We must have the key
to the left and right of the broken key for him to work with
as a pattern. A digital photo
of the keys showing the area of the broken key will
also help him. We will have to get a quote--
SEND
MAIL
Knuckles By Abel- Mount under hammer shank-
Full set for one piano-
SH921E
$260.00
Knuckles
By Tokiwa- Mount under hammer shank- Full set for one piano-
SH921EJ
$285.00
Hammer Flange Washers-- For under the screw on the flange.
Distributes the tension of the flange
screw without breaking the flange
Per 100
SH920
$ 7.50
HAMMER
SHANK REPAIRS
(Mostly for very old or European pianos with round shanks)
Hammer shank repair sleeves-
Slit Nickel plated- 2 inch long- One size fits all- Dozen-
SH3506 $ 5.00 per doz.
Same as above-
100-
SH3506 $ 40.00 per 100
Hammer
shank repair sleeves-
Not slit- Brass tube- 7/32"- Dozen- I only use
this kind- Full Upright size SH3505
$ 12.00 per doz.
100 of either size
SH3505
$ 95 per 100
Not slit- Brass tube- 3/16"- Dozen-
(Limited supply on hand)
Inquire
$ 8.55
Instructions for using
brass sleeves
Hammer Shank Cutter and Hammer Work Tools
Hammer
felt hardener
Read
about voicing hammers in the Repair Section
Read my instructions on panic hammer repair, and hammer shank repair.
GRAND BACK CHECKS
See graphic above
Back Checks Made
by Tokiwa-- with wire
SH924AJ $ 315.00 / set of 90
Back Checks Made by Tokiwa-- without wire
SH923AJ $ 295.00
/ set of 90
Back Checks Tokiwa Steinway Style (with wires)
SH924CJ $ 375.00 / set of 90
Back Checks Tokiwa Steinway Style (without wires)
SH923CJ $ 365.00 / set of 90
Back Checks
Steinway US style with wires
SH924C $ 695.00 /
set of 90
If in doubt, order either 924AJ or 923AJ (Standard Domestic models)
OTHER GRAND ACTION PARTS
Steinway sustaining monkey--
SH929 $ 41.75
Inquire by
E-Mail for a set
Grand Capstan
Screws- Dozen- 1 3/8" Brass polished round heads
with holes SH558B
$ 27.50
Capstans-- Wood for some Oriental modern pianos
and many old uprights--
Without wires, but with
holes ready to receive wires-
Be sure to
lubricate the tops with graphite. It is not smart to replace only a few.
Set of 100
SH508
$ 132.00
Flanges-
All purpose- Fits nearly all full sized upright
pianos for hammers, wippens, and other applications
NOT
for dampers. Used in grands also.
Aeolian ONLY
Dozen-
SH511B $
39.00
Standard Flange
Dozen-
SH511CJ
$ 24.00
Set of 90-
SH511CJ $
167.00
Agraffes
(device with one, two, or three holes which wire passes through)
Key Button Stock-- Not lacquered - limited supply
Grands-- 3 inches wide--
SH520B
$ 1.90 each
Key Felt Bushing Cauls (not pictured)
This
is the favorite in production shops- Durable and accurate
HDPE resists glue-- Available in four sizes:
.147" One Dozen SP147
$ 25.00
.162" One Dozen SP162
$ 25.00
.138" One Dozen
SP138 $
25.00
.125"
One dozen
SP125
$ 25.00
Key Lever Front Rail Oval Pins- Used on all uprights
and grands.
1 7/16 inch by .146 inch- Nickel
plated- Per set of 100
SH352 $ 59.00
Key Lever Balance Rail Pins- Used on all uprights and
grands.
2-1/8 inches by .146 inch- Nickel
plated- Per set of 100
SH351A
$ 65.00
2-5/8 inches by .146 inch- Nickel plated- Per set of 100
SH351B $
77.00
2-1/8 inches by .160 inch- Nickel
plated- Per set of 100
SH351D
$ 97.00
2-5/8 inches
by .160 inch- Nickel plated- Per set of 100
SH351E
$ 130.00
One Assortment of paper
shims (punchings) for leveling keys of one piano-
We no longer sell these shims alone. They are only available for those
buying Front Rail
and Center Rail Felt Bushings. Both
are essential to correctly restore both key drop
and leveling of the keys.
Front Rail
ShimPrtFrnt
$ 5.75
Center Rail
ShimPrtCntr $ 5.75
One Assortment of paper shims (punchings)
for leveling keys of one piano-
An
assortment of 1000 of 14 sizes of paper shims to level Front Rail punchings
SH338A
$ 165.00
An assortment of 1000 of 10 sizes of paper shims to level Center Rail
punchings SH333A
$ 82.00
Learn to level your Piano Keys from our online Repair Instruction Area.
Tuning Pin Wooden Bushings-- SEE TUNING PIN PAGE
KEITH WILL DO THE REPAIR FOR YOU BY MAIL:
BRIDGE REPAIR PARTS
Part Description: Part Number Price
Bridge pins- Pointed at one end and round on the other- copper
plated steel
#6
.076 dia 24313A in graphic
SH551-6 $ 18.00 per
100
#7
.086 dia 24313B in graphic
SH551-7
$ 18.00 per 100
#8 .096 dia 24313C in
graphic
SH551-8
$ 18.00 per 100
#9 .109 dia 24313D
in graphic
SH551-9
$ 22.00 per 100
Tuning Pin Wooden Bushings-- SEE TUNING PIN PAGE
Send E-Mail for Bridge Rebuilding by our craftsman
SQUARE GRAND PIANO PARTS:
We can offer consultation, but basically square grand parts require custom creation, and at present we don't have the time to do it. We can supply hammers, but you will have to modify them to fit.
GRAND
PIANO HARDWARE--
Anything you cannot find
on the present page should be on the Hardware Page.
UPRIGHT PIANO ACTION PARTS-- Full Uprights, Spinets, and Consoles
GENERAL PIANO ACTION PARTS-- These parts can apply to all pianos
FELT PARTS FOR GRANDS AND UPRIGHTS
CENTER
PINS AND
TOOLS
This covers the pins used in all flanges and hinged
points in all actions.
PEDALS
GO TO THE PEDAL HARDWARE PAGE for Hardware:
Don't try to re-use the old pedals in a restoration. We can get you a very authentic replacement.
GRAND PEDALS- Again, you may order from a graphic to be sure of yourself.
TUNING PINS, PIN TREATMENTS, AND PIN BLOCKS
LUBRICANTS AND LIQUID TREATMENTS
PLAYER
PIANOS AND REED / PUMP ORGAN SUPPLIES
GO TO THE
PLAYER PIANO PARTS PAGE:
Also,
we suggest you purchase Mr. Reblitz's book on Player Piano
Repair on the Book Page.
BUY THE TOOLS TO MAKE THE REPAIRS
ORDER BY PHONE WITH CREDIT CARD
Call Toll Free at: 1 (800) 338-8863
OR:
Go
to Mail Order Form for printing:
Online
help available
