PIANO
ACTION PARTS FOR
FULL SIZED UPRIGHTS Check
to see if you have a Full Sized Upright
ORDERING
INFORMATION: MINIMUM
ORDER:
Minimum Order $20 SHIPPING
POLICY: Priority Mail shipping for most items. UPS by request. You
MUST browse the Catalog
area, and try to learn what you want. We no longer search our catalog for you.
Have
this information ready: 1. Description of parts
2. Part Numbers 3. Prices
4. Dimensions where needed BEFORE you call us please. Make
sure you are in the catalog area for your kind of piano-- Such as Grand
Pianos, Full Uprights,
Spinets, etc.
If
you are confused, call us for assistance. If
we do not answer the phone, we are probably here-- Just leave a message- we will
return your call (it may not be the same day). :-) |
This
includes all of the moving parts from your finger to the hammers.
If
in doubt, please go to the diagram pages and double
check to see if you are ordering the right part. It is impossible to
give a "Back" button to return to so many pages, so please use your browser's
"Back" button Also,
I often give you a link to the page which tells how to make the repair or
installation of the new part.
YOU
CAN NOW ORDER BY PHONE EXHAUSTIVE
WORD INDEX OF THE WHOLE SITE:
BRIDLE
STRAPS FOR ALL UPRIGHTS If
your upright piano has the hole below the catcher on the hammer butt stump, you
need the cork ended straps. If you have no extension below the catcher, and
no hole that is about 1/4 inch diameter, you need the metal clip on strap. The
original strap was anchored in the hammer butt in the hole where the catcher shank
was attached to the hammer butt. Simply cut the excess off that is left of the
old strap. You are not going to try to insert the new strap into the hammer butt
hope-- cannot be done.
Bridle Straps- (Metal
clip-on type- 90)
SH1500
$ 32.50
Bridle Straps- (Cork
end for hole receiving type- 90)
SH6516
$ 27.50
Inserter
for cork ended bridle straps- We no longer provide the simple tool Make
one by removing the top off of a carpet tack and embed the blunt end in one
end of a 1/4 inch wood dowel. Push the point into the back end of the cork and
follow the instructions at: Read my instructions
for installing Bridle Straps Hammer
Butt Felt Squares-
Mount on the lower area of the hammer butt to cushion the top
of the jack. This solves the clicking
in an action. Set of 100-
Medium-- Red-- .164
inches thick--
SH308-1/2R
$ 7.50 Regulating Screws-
Spade head- 3/4" long x .093
Old Part number in graphic-
245305B
SH544
$ 15.00 for 100 or $ 5/dozen Center Pins Bridge
Pins and Hitch Pins
General
Parts
Down right essential to restore and
repair the upright piano. Part Description:
Part Number Price
Back Checks with felt shoe-
Without wires- Dozen
SH530XJ
$ 21.00
Full set of 90-
SH530XJ $147.50
Back Check wires- 3-5/8 inches length - 100
SH531
$ 21.00
Damper Wires-
3-1/2 inches length - 100
SH536
$ 83.00
Bridle wires-
- 100
SH532 $ 25.00
Learn how to repair and adjust Backchecks
Butt plate to rail repair clips:
This is a new item for an alternative repair of a broken brass rail tongue. Historically, our brass repair clips have been used to replace a tongue that is broken at the groove or screw hole. Our new clip does not require a screw and butt plate. For installation, simply remove the hammer butt assembly; install the repair clip to the existing butt by using the #20 center pin; file the brass rail material down to / or past the screw hole; mix epoxy and apply to the repair clip and insert on to the brass rail.
Included in our new kit is (12) repair clips, (12) 347-20 center pins, and (2) Hardman convenience packets of fast setting epoxy.
Singleclip SH513C $ 2.50
Kit SH513K $ 22.50
Clip for old Kimballs using the same "A" and "B"
SH513KA $ 5.85 this is the old brass repair clip; while supplies last
SH513KB Use SH513K above
Hammer Butts--
Butt, stump, and felt parts with hole to receive hammer shank-- See
Diagram
Wooden Flange Type-- Each-- Flange included
SH507J
$ 8.95
Wooden Flange Type-- Set
of 90-- Flange included
SH507J $ 595.00
SH507 is the most common butt / flange arrangement found
in uprights
Brass
Rail type Butt (purchase brass clips elsewhere on this page)
Each SH509J
$ 7.95
Brass Rail type Butt (purchase brass
clips elsewhere on this page) Set of 90 SH509J
$ 565.00
Billings hammer butt with Billings metal flange and hammer
flange attached SH509X $ 17.50
Limited quantity in stock-- no cut for quantity order
Billings Metal Flange-- Add
to SH509 for Billings butt arrangement-- Each
SH512
$ 4.50
Billings
Metal Flange-- Add to SH509 for Billings butt arrangement-- Dozen
SH512 $ 21.00
Billings Metal Flange--
Add to SH509 for Billings butt arrangement-- Set of 90 SH512
$ 290.00 Flange
Repair- Acts of Desperation- Scroll down to see the tiny hinge for improvising
flange repairs Yamaha type hammer butt--
With metal butt plate-
WITH FLANGE- Made by Tokiwa
SH3800J
$ 7.45 each
Kawai type hammer butt-
SH3804J
$ 7.95 each
Upright butt catchers
(catch the back check mounted on stub from hammer butt)
Dozen only Old part Number-- 24434
See graphic below
SH2507J
$ 41.50
Hammer butt
brass plate replaces broken one- With screws-
SH518A $ 13.85
per Doz.
Hammer butt brass plate repair for old Kimball- No
screws-
SH518-1/2
$ 14.85 per Doz.
Brass Flange Rail
Duplication Send sample of old rail.
SH595
$ 255.00 per section
Damper
Flange repair for Kimball with springs attached-
SH539
$ not available at present.
Penistan Wippen repair part- This is a genious invention
for saving a wippen
with
one side broken-
SH298 $
2.50 ea.
I have used these with very satisfactory results.
This only works with wippens which receive a sticker
centered in a cavity in the
under side of the wippen where one skirt of the wippen is destroyed.
Screw provided. You must mount
the clip with the sticker in place, then
shorten the pin with diagonal pliers or nippers.
Free
advice: Smile-- you will get it right by and by :-)
Hammer return spring replacement- Mounted
on a wooden rail behind the hammer
The kit includes (12) repair clips, (1) 1/16” extra length drill bit and screws. The clip quickly installs in any upright action
without removing the spring rail by using the included drill bit. The extended drill bit allows you to use a small hand held drill
or Dremmel tool to access the rail. After drilling the hole, a screw may be inserted through the repair clip and fastened using
our Kimball screwdriver blade (product SH 4106) SH1519K $ 26.50
Hammer butt springs (100 springs) See
in top of graphic below. Mounted
on a wooden rail behind the hammer
(Like original factory part, but hard work- 1 7/8" Long tail- Medium tension)
SH519A
$ 18.50
(Like original factory part, but hard work-
2" Long tail- Heavy tension)
SH519B
$ 30.00
(Like
original factory part, but hard work- Spinet type)
SH3777
$ 18.25
Hammer Butt Return Springs-- Flange
mounted (no illustration) These cute rascals are mounted
to the hammer butt hinge point and tuck up to catch a piece of
string, usually silk, which then helps the hammer more quickly
back into position. Found on Kimballs and other pianos
They may
fit some Asian pianos, but no promises. Set of 100
SH3736 $ 21.00 Straight
Spoons- Used at the back end of the wippen
to
activate the damper levers.
SH528
$ 20.00 per 100 Regulating Buttons- Wood
This button is commonly used as a stop
for the jack. Some other uses too, as in
players etc.
You must buy SH330A felt punchings also
and glue them on.
SH541 $ 17.50 per 100
Regulating Felt Punchings- Felt round piece on the bottom of
the regulating buttons. (100) See
Felt Parts Page Regulating Screws- 1 1/8 inch
long. Has the ring
type top needing REGULATING TOOL to adjust.
SH540 $ 12.50 per 100
Flange Screws- Replaces
rusty or broken screws.
Zinc plated. (Per 100)
Size- 8 x 3/4"
SH1547
$ 9.00
Size- 9 x 7/8"
SH1548 $ 16.50
Regulating
Screw replacement- When the screw ring or tap breaks off On Steinway metal
rail, drill hole and use sheet metal screw. Exceptional life saver when
jack regulating button busts-
Dozen
only-
SH1539 $ 24.45
Read
my instruction for adjusting a jack And,
how to repair a jack which has come loose. Flanges-
All purpose- Fits nearly all full sized upright
pianos for hammers, wippens, and other applications NOT
for dampers. Used in grands also. Aeolian ONLY
Limited supply
SH511B
$ 6.00 each
Standard Flange
Dozen-
SH511CJ
$ 24.00
Set of 90-
SH511CJ
$ 167.00 Asian
Hammer Butt Flange Yamaha,
Samick, and Young Chang butts. Made in Japan
Has the hammer butt return spring mounted ON the butt with string
loop
Dozen minimum
SH3809J
$ 24.00
Set
of 88
SH3809J $ 169.00
Kawai Hammer Butt Flange
Same flange as the Asian flange, but for
Kwasi only
Dozen minimum
SH3804FJ
$ 30.00
Set
of 90
SH3804FJ $ 210.00
Damper
Lever with flange and spring assemblies-
The wood part of the lever is 4-1/2 inches long.
(If unsure, send old one) SH537W
$ 6.95 or $ 83/dozen
Full set of 70 for upright SH537J
$ 392.00
(See Felt Parts for heads
and felts)
Damper flange with spring attached like original part-
SH514J
$ 4.50
Full set of 70 damper flanges
SH514J $ 197.00
Billings flange-- Metal "Y" type clip--
Billings flange-- Dozen (must be in a larger order)
SH512
$ 21.00
Billings flange-- Full Set --
SH512 $
290.00 Double flange for
full sized upright-- hold hammer butt AND damper
NOTE: Damper return spring is included on the double flange.
Each (limited availability)
SH514-1/2J
$ 10.00
Damper repair springs- For Uprights
Tucks under damper flange screw-
Set of 100
SH1538A
$ 83.50 or $ 11/dozen Jack
springs- Set of 100-
1 inch for
full sized uprights and some consoles only
SH527A $ 13.50
Read instruction on jack spring replacement. Jack
Spring Reamer for removing glue when replacing jack springs--
This tool greatly speeds up the removing of old glue
from the jack mount. springs are being replaced-
SH127
$ 24.45
Sticker Kit- [ Diagram
I, #12 ] Rod
from rear of key lever up to wippen- Includes tongue and bushed flange.-
Use a good sticker as a template, cut
the dowel, and assemble with Elmer's
Carpenter's Glue.
Kit for stickers from 4' to 6-1/2"
SH510AJ $ 12.00
ea.
Kit for stickers from 6-1/2" to 9"
SH510BJ
$ 12.00 ea.
We make stickers fit your piano-
For pianos with stickers shorter than 4 inches or
longer than 9 inches Send
us a sample of a good sticker, and we will match it
$ 26.00 ea.
We make stickers for player pianos also. Send a good one
to copy.
$ 36.00 ea.
Address:
Steve's
Piano Service
2545 Roosevelt Rd; #107/#225
Marinette, WI 54143
Print order
form and add $ 6.00 shipping cost.

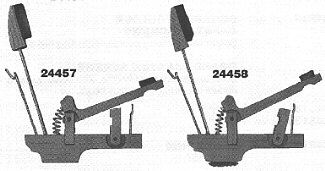

Wippen
for upright- sticker type- All wippens include all parts
as in [ Diagram I, # 14, 19,
16, 15, 21 and flanges and
bridle trap wire attached ]
24457 in
SH523SJ
$ 13.75
Wippen for upright- dowel
or capstan type activation from below- 24458 in the photo SH523DJ
$ 1375
Both SH523 and SH523-1/2 above-- Contain 45 spoons to the right
and 45 to the left-- A set of 90. $850.00 This will mean
notes without dampers in the treble will have spoons, but this causes not problem.
Key Felt Bushing Cauls
Used to hold new bushing felt in place (not pictured) This is the favorite
in production shops-
Durable and accurate. HDPE resists glue. Available in four sizes:
.147"
dozen
SP147
$25.00
.162"
dozen
SP162
$25.00
.138"
dozen
SP138
$25.00
.125"
dozen
SP125
$25.00
Wood
Dowel Capstan- Brass Capstans Key
Button Stock- Key Button Stock-
STEINWAY
UPRIGHT PARTS If
you have a Steinway, you MUST buy the Steinway flanges since they ARE different. Steinway
Hammer Butt-- Flange DOUBLE for Hammer and Damper-
Specify spring diameter- .029, .031, or .033
SH6409 $ 8.00
ea. Steinway Hammer Butt-- Flange for Hammer only 1 1/16th
inch long-
SH6410 $ 8.00
ea.
Steinway Hammer Butt-- 74 Double Flange, 14 Single Flange--
Set of 88 SH6408
$ 1120.00 Steinway Hammer Butt Flange Set
COMPLETE
74 Double
flanges, 14 Single flanges
SH6411 $ 495.00
Steinway Wippen
Flange 1 1/8th inch long-
SH6405 $ 2.50
ea.
Full
Set of 88
SH6405
$ 220.00 Steinway Hammer Butt with DOUBLE
Flange attached
Specify
spring diameter- .029, .031, or .033
SH6406
$ 15.95 ea
Steinway Hammer Butt with Single
Flange
SH6407 $ 13.25 ea.
Steinway
damper Lever with brass plate
SH6404 $
15.95 ea
Full Set of 74
SH6404
$ 993.00
Steinway Wippen- Model K-- Small
Heel
SH6400 $ 17.00 ea.
Full
Set of 88
SH6400
$ 1300.00
Steinway Wippen- Model K-- Large Heel
SH6401 $ 17.00 ea.
Full Set of 88
SH6401 $ 1300.00
Steinway
Wippen- Model V--
SH6402 $ 17.00 ea.
Full Set of 88
SH6402 $ 1300.00
Steinway
Wippen- Model F--
SH6403 $ 17.00 ea.
Full Set of 88
SH6403 $ 1300.00 FULL
SIZE UPRIGHT: JACKS
This jack for full
uprights and some consoles is about 3 inches high.
Measure ONLY the jack, not including the jack flange.
If yours is 2 inches high, go
to the spinet section up the page for your jack. Jacks for Full Sized
Uprights with flanges
Dozen-
SH526-1/2J
$ 46.00
Set of 90-
SH526-1/2J $ 280.00 Jack
Flanges
Order by
name $ 2.50 each Jack Springs--
See up the page UPRIGHT
HAMMER SHANK REPAIR Part Description:
Part Number Price
Learn how to repair a broken hammer. Second
location Hammer head extractor-- Absolutely essential
for replacing hammers-
Full
Size Uprights- You must order this tool to take the old hammers off.
SH130A $ 46.75 Hammer
head extractor-- Absolutely essential for replacing hammers-
Spinets / Consoles- You must order
this tool to take the old hammers off. SH130AS
$ 44.50 Clamp- Used with Hammer head
extractor This
clamp is used where a shank is broken. It is attached so that the
hammer can be pulled with the Extractor.
SH130B
$ 32.50
Hammer shanks (upright
only)- Hard Maple- Sold by the dozen or in sets of 100
Please measure the diameter of your piano's shanks
to be sure you order correctly.
7/32" x 5 1/4" (usually only found on full sized uprights-- Some excetions)
SH504 $ 52.00
per 100; $ 7 per dozen
3/16"
x 4 1/4" (usually only found on spinets and many consoles)
SH3716 $
24.00 per 100; $ 5 per dozen Hammer shank repair sleeves-
Slit Nickel plated- 2 inch
long- One size fits all- Dozen-
SH3506
$ 5.00 per doz.
Same as above- 100-
SH3506 $ 38.00
per 100 Hammer shank repair sleeves-
Not slit- Brass tube- 7/32"-
Dozen- I only use this kind- Full Upright size
SH3505 $ 12.00
per doz.
100 of either size
SH3505 $
90.00 per 100 Not
slit- Brass tube- 3/16"- Dozen- (Limited supply on hand)
Inquire $ 8.55
Instructions
for using brass sleeves
Hammer shank Cutting Tool- Nips
the shank with a clean cut-- Plier type tool-
SH237 $ 12.50
Hammer shank reducer-- Use to shave hammer shank if it is
too large. Does smooth job- SH75
$ 26.25
Universal
handle needed- SH26
SH26
$ 38.00
Read about voicing hammers
in the Repair Section Hammer felt hardener- Hammers are
often too soft when new. ORDER
HERE
Drills for hammers and shanks- See
Regulating and Repair Tools
Read my instructions on panic
hammer repair, and hammer shank repair.
More
Tools for Hammer Work KEITH
WILL DO THE REPAIR FOR YOU BY MAIL: CLICK
HERE TO LEARN MORE
BRIDGE
REPAIR PARTS-- All Uprights Part Description:
Part Number Price
Bridge pins- Pointed at one end and round on the other- copper
plated steel
#6
.076 dia 24313A in graphic
SH551-6 $ 18.00 per
100
#7
.086 dia 24313B in graphic
SH551-7
$ 18.00 per 100
#8 .096 dia 24313C in
graphic
SH551-8
$ 18.00 per 100
#9 .109 dia 24313D
in graphic
SH551-9
$ 22.00 per 100
Tuning Pin Wooden Bushings-- SEE
TUNING PIN PAGE Send
E-Mail for Bridge Rebuilding by our craftsman
GRAND
PIANO
ACTION PARTS GENERAL
ACTION PARTS FELT
PARTS FOR GRANDS AND UPRIGHTS CENTER
PINS
AND TOOLS This covers the pins used in all flanges and hinged
points in all actions. PEDALS
GO
TO THE
PEDAL HARDWARE PAGE
for Pedal Hardware: Don't try to re-use
the old pedals in a restoration. We can get you a very authentic replacement.
Upright
Pedals Upright
graphic and prices. Grand
Pedals Grand
graphic and prices. CLICK
HERE TO GO TO: TUNING PINS, BRIDGES, AND PIN BLOCKS LUBRICANTS
AND LIQUID TREATMENTS- CLICK
HERE PLAYER
PIANOS AND REED / PUMP ORGAN SUPPLIES
GO TO THE
PLAYER
PIANO PARTS PAGE:
Also,
we suggest you purchase Mr.
Riblitz' book on Player Piano Repair
on the Book Page. BUY
THE TOOLS
TO MAKE THE REPAIRS
ORDER BY PHONE WITH CREDIT CARD
Call Toll Free at: 1 (800) 338-8863 OR: Go
to Mail Order Form for printing: Online
help available
BACK
TO PIANO TITLE PAGE
|
